Bracket/Cross Bars

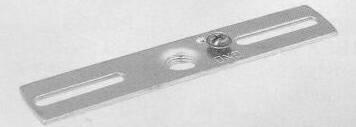

OFFSET CROSS BAR
Length 3-15/16" Slips Over 3/8 IPS Pipe
Screw Holes 2-3/4" C. to C.* Tapped #8-32 Ground Screw Inserted

D02-2-644
QUICK HANG BRACKET BAR
Makes Hanging Heavy Fixtures Much Easier
Length 4-1/4" Zinc Plated

.0845" Thickness with Ground Screw
D02-2-6400   1/8 IPS Center Hole
D02-2-6402   1/4 IPS Center Hole
D02-2-6404   3/8 IPS Center Hole
This page was last updated: August 20, 2021
LONG OFFSET CROSS BAR
Length 4-1/2" Slips Over 3/8 IPS Pipe
Inside Screw Holes 2-3/4" C. to C.* Outside Screw Holes 3-1/2" C. to C.*  Tapped #8-32
Ground Screw Inserted

D02-2-636
TAPPED BRACKET BARS
Ground Screw Inserted

Zinc Plated
D02-2-6421/8 IPS Center Hole 3-7/8" L  x 3/4" W
D02-2-6431/4 IPS Center Hole 4 1/8" L X 1" W
D02-2-630#8-32 Center Hole  3-7/8" L  x 3/4" W

0.1150” Thickness, unfinished
D02-2-64061/8 IPS Center Hole
D02-2-64081/4 IPS Center Hole
D02-2-64103/8 IPS Center Hole
*C. to C. is an abbreviation for center to center.
H070
Page
OFFSET CROSS BAR
LENGTH 3 15/16" Slips Over 3/8 IPS Pipe
Inside Screw Holes 2-3/16" C. to C.* Outside Screw Holes 3-9/16" C. to C.* Tapped #8-32
Ground Screw Inserted

B02-C2919
LONG OFFSET CROSS BAR
Slips Over 3/8 IPS Pipe
Screw Holes Tapped #8-32

LENGTH 4-1/2" Screw Holes 4 1/4" C. to C.*
B02-C2910

LENGTH 5" Screw Holes 4 5/8" C. to C.*
B02-C2889

LENGTH 6 1/4" Screw Holes 6" C. to C.*
M02-2-106
TAPPED BRACKET BARS
1" Wide 4 1/8" Length
Tapped # 8-32 Ground Screw Hole

D03-E41101/4 IPS Center Hole
TAPPED PLAIN BAR
Length 5 7/8"
Unfinished

M02-2-811/8 IPS Center Hole
BRASS PLAIN BAR
Slips 1/8IP, 3/4" Wide, 1/16" Thick, Unfinished

        Lenght
H02-D210UNF   2"
H02-D214UNF   2 1/2"
H02-D218UNF   3"
H02-D222UNF   3 1/2"
H02-D226UNF   4"
H02-D230UNF   4 1/2"
H02-D234UNF   5"
H02-D238UNF   5 1/2"
H02-D242UNF   6"
Crossbar French Hook
used to hang European sconces, fits 4" box

D03-E4093
TAPPED BRACKET BARS
1" Wide 4 3/8" Length
Tapped # 8-32 Ground Screw Hole

D03-E48633/8 IPS Center Hole
Best if viewed with 1024 resolution!!!!

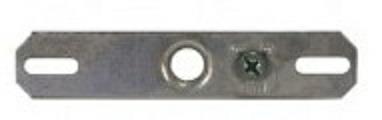

TAPPED GEM BRACKET BAR
Ground Screw Inserted

Zinc Plated
S05-9A11251/8 IPS Center Hole 3-7/8" L  x 3/4" W
Rands Creative Creations   Harold Rand Enterprises
3729 Freeman Rd Jacksonville FL 32207
  904 398 7925
[email protected]
Crossbar side mount
4-3/4",
Screws onto standard electrical box
and allows ceiling canopy to mount through side holes
Fits 5" to 5-1/4" diameter side-mount canopies.
Steel is .08" thick.

B02-C2878
