Halogen Sockets
This page was last updated: December 3, 2010
PORCELAIN BI-PIN
HALOGEN SOCKET
With Heat Sink
G-5.3 Base
Silicone/Fiberglass 200°C
18 AWG Leads
Rated 100W - 250V
G03-F53/51 (with 6” leads)
S05-80-1668 (with 8” leads)
D02-D3781 (with 10” leads)
G03-F53/51/12" (with 12” leads)
PORCELAIN BI-PIN
HALOGEN SOCKET
2 Terminals With 4 Set Screws;
2 For Bi-Pin Bulb, 2 For Power
G5.3 Base
Rated 50W-12V
D02-D3782
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
Best if viewed with 1024 resolution!!!!
Page
H037-1
MEDIUM BASE TO PORCELAIN BI-PIN
HALOGEN ADAPTER
With Heat Sink
G-5.3 Base
Silicone/Fiberglass 200°C
18 AWG 10" Leads
M02-LALP42245

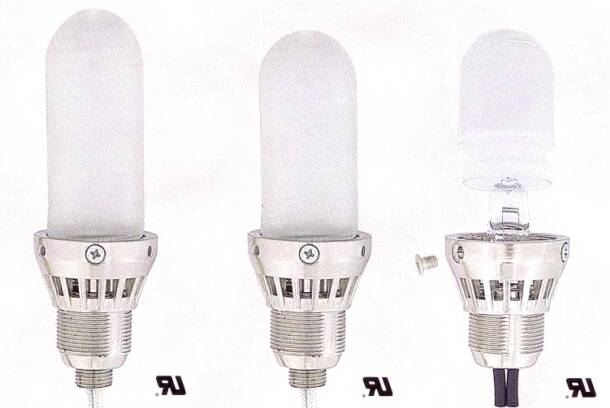

LAMPHOLDER UNIT WITH SAFETY GLASS
For D.C. Bayonet Base
6" SF-2 Leads thur
Bottom Tapped 1/8 IPS
Height 3 25/32"
D02-E6410
For G-8 Base
6" SF-2 Leads thur
Bottom Tapped 1/8 IPS
Height 3 9/16"
D02-E6415
For G-4, G-5.3, GX-5.3 or G6.35 Base
6" SF-2 Leads thur
Bottom Tapped 1/8 IPS
Height 3 9/16"
D02-E6420
