3-WAY ROTARY SWITCH
2-CIRCUIT - 4-POSITION
OFF - L1 - L2 - L1 & L2
4-1/2" LEADS
Plastic Knob  Rated 6A-125V, 3A-250V

D02-4-3747    Vaccuum Brass Plated Knob
3-WAY ROTARY SWITCH
Metal Bushings
Two Circuit – Four Position:
L-1, L-2, L1-2, Off.
6”Leads – 3/4”Strip
3A–250V, 6A–125V.

3/8”Bushing
S05-8A1136  Brass Finish
S05-8A1137  Nickel Finish

5/8”Bushing
S05-8A1138  Brass Finish
S05-8A1139  Nickel Finish
3-WAY ROTARY SWITCH
2-CIRCUIT-4-POSITION
Metal Shank
Removable Brass Knob
OFF- L1 - L2 - L1 & 2
6" Leads

Rated 3A-125V. 1 A-250V
D02-4-3301  Brass - 3/8" Shank
D02-4-3302  Brass - 5/8" Shank

Rated 6A-125V, 3A-250V
D02-4-307    Brass - 3/8" Shank
Page
H057
Best if viewed with 1024 resolution!!!!
3-WAY ROTARY SWITCH
2-CIRCUIT - 4-POSITION
OFF - L1 - L2 - L1 & 2
5" Leads
Rated 6A-125V, 3A-250V

3/8" Plastic Shank
D02-4-301       Brass Knob
D02-4-3744     Nickel Knob

5/8" Plastic Shank
D02-4-302Brass Knob
3-WAY ROTARY SWITCH
Metal Bushings
Two Circuit – Four Position:
L-1, L-2, L1-2, Off.
6”Leads – 3/4”Strip
3A–250V, 6A–125V.

1 1/8”Bushing
S05-8A1365  Brass Finish
S05-8A1366  Nickel Finish

1 1/2”Bushing
S05-8A1415  Brass Finish
S05-8A1416  Nickel Finish
3-WAY PUSH BUTTON SWITCH
Metal Bushings
Two Circuit – Four Position:
L-1, L-2, L1-2, Off.
6”Leads – 3/4”Strip
3A–250V, 6A–125V.

3/8”Bushing
S05-8A1128  Brass Finish
S05-9A1129  Nickel Finish

5/8”Bushing
S05-8A1130  Brass Finish
S05-8A1131  Nickel Finish
3-WAY PUSH BUTTON SWITCH
Metal Bushings
Two Circuit – Four Position:
L-1, L-2, L1-2, Off.
6”Leads – 3/4”Strip
3A–250V, 6A–125V.

1 1/8”Bushing
S05-8A1369  Brass Finish
S05-8A1370  Nickel Finish

1 1/2”Bushing
S05-8A1411  Brass Finish
S05-8A1412  Nickel Finish
Single Circuit Hi–Low Rotary Switch w/Diode Rated: 6A-125V,3-A 250V
6”AWM 105°C Leads Strip 3/4”

3/8”Bushing
S05-8A1140 Brass Finish
HI-LOW SWITCH
Low Position is 50% Power
Center shank is Threaded 1/8 IPS
5" Leads • Plastic Knob
Rated 500W-120V

D02-4-3749Vacuum Brass
  Plated Knob
All of our 3 Way Switches Can Now Be Prewired To Function As A Hi/Low Switch
Can Be Wired Low/High/High/Off   or   High/Low/High/Off  ADD $ 8.00 EA
All of our 3 Way 2 Circuit Switches Can Now Be Prewired To Function As A Hi/Low Switch
Can Be Wired Low/High/High/Off   or   High/Low/High/Off  ADD $ 8.00 EA
S05-8A1371 and S05-8A1140 above are 2 wire single circuit there is a diode connect to the blue and red wire which provide a high/low function! They are 2 circuit switches but are wired to work as a single circuit switch

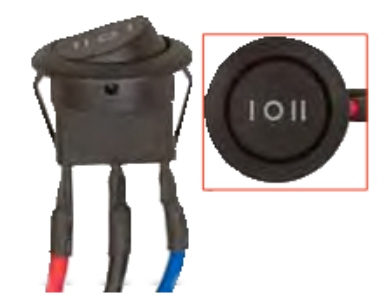

Round Black Hi-Low Rocker Switch Sequence: Hi-Low
Rated: 6A-125V,3A 250V 6”AWM 105°C Leads Strip 3/4”

S05-8A1371
